UL2464 Wire Cable: 5 points before you select

What a UL2464 wire cable refer to, and what is the definition of the UL2464?

Mainly applied in devices that require low voltage, UL2464 wire cable features as a standardized multi-conductor cable. Those devices mainly require communication, monitoring system and signal transfer. This type of cable is widely used in laptops, office devices, monitoring systems and audio installations. The “UL” designation represents Underwriters Laboratories, which is a globally-known safety certification institute that conduct the testing and certification of products for safety and performance. The number “2464” refers to a specific UL certification code that enables the identification of the cable kind, which enables the fit for safety and performance standards for certain devices.

Where does UL2464 wire cables typically apply?

a. Computers & Electronic applications: this type of cable is widely applied in internal links within laptops and electronics, which connects elements like hard drives and electricity supplies. They are also employed to link external applications like printers and monitors to enable the reliability of communications between different equipment.

b. Industrial monitoring System: control panels, machinery and auto systems are linked with UL2464 cables in industrial conditions, which is helpful for enhancing the transfer of signals and data. They are applied in robotics as well because they enable the seamless communication between control units, which achieves accurate monitoring in automatic processes.

c. Communication: because of the capability to achieve reliable and stable signal transfer, UL2464 cables are mostly applied in telecommunications systems that require such function. They are applied in devices that require low-voltage signal as well. For example,, signal between audio and video should be transferred in commercial and household environments.

d. Office devices: printer and copiers that often appear in office buildings require the cable for the internal wiring, which enables the achievement of secure and steady links between various sections of the device. Often interconnection between networking applications can be achieved, which achieves uninterrupted data transfer for the efficient operation of office.

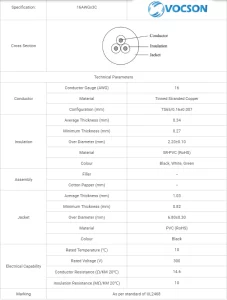

VOCSON UL2464 #16AWG x 3C cable

What are the major features of UL2464 wire cable?

1. Multi-Conductor construction: 2 or more insulated conductors are usually contained with UL2464 wire cable. the conductors are grouped with the same cable, which are widely applied for data transmission, signal monitoring and the functioning of low-voltage setup. Several connections can be enabled with only one cable, which decreases the needs for individual wiring and simplifies setups.
2. Voltage Rating: the cable is mostly fit for withstanding about 300 volts of voltage, making it fit for various low-voltage devices like computer systems, controlled panels and other equipment.
3. Temperature: with a temperature rating of minus 20°C to 80°C, this type of cable can achieve reliable functioning in many indoor conditions like office, and monitoring systems, by handling moderate temperatures.
4. PVC Insulation: the conductors insulated with this kind of material enables the flexible and durable protection against wear and tear, which allow the cable to finish the setup easily.
5. Flexibility: because of the nature of flexibility, this cable can be easily installed, especially in restricted spaces or routed along tight pipes. This flexibility allows the cable to be bent and moved frequently in some required applications like robotic machines and internal wiring of electronics.

What are the essential roles of UL2464 wire cable?

1. Signal Transfer: the maintenance of clear and consistent signal transfer plays crucial roles for the performance of systems like laptops and communication networks. That is why UL2464 wire cable is used here because of the powerful transmission and monitoring capability. Designed with several conductors, the cable enables the transfer of different signals in only one cable, which achieves the reduction of complexity and stable data transfer.
2. Flexible and Space-Saving Wiring: providing high flexibility and compactness of wiring solutions for devices with limited space, the cable is perfectly fit for electronics and office devices where space is a concern. Because of the high flexibility, UL2464 wire cable can achieve easy routing along confined areas, which simplifies the setup. What’s more, the demand for multiple individual wires can be reduced by using the cable built with several conductors, which saves more space and decrease clutter.
3. Safety and Compliance: to ensure the safe use in a wide range of devices, UL2464 wire cable fits the safety requirements required by UL. A UL-certified cable plays a crucial role in conditions where safe electrical operation is needed. And the cable used can ensure compliance with industrial standards and decreases the hazards I’d electrical malfunctions.

What are the proper setups of UL2464 wire cable?

Before Installation

1. Environment inspection: the setup environment should be in the range of minus 20°C to 80°C that is required by the operation temperature of the cable. Also, keep the cable away from the over-humid and direct-heated places.
2. Measure the Distance: the total length that is needed for the cable setup should be calculate to ensure enough slack are reserved to allow bends and corners.

Away from Interference

1. If UL2464 wire cable is installed around power wires, keep them apart for at least few inches. This help avoids the degradation of signal quality caused by electromagnetic interference. Extra protections against the interference are usually provided by UL2464 wire cable. What’s more, it is also a good component to keep it away from high-electricity power lines. More importantly, the cable should also be kept away from heated areas, such as motors or other devices where heat may be produced. If the cable is exposed to high temperatures for a long period of time, the insulation tion may be degraded ads time goes by.

Proper setup of Connectors

1. The insulation should be stripped from the conductors with a wire stripper for the preparation of cable connection. And be cautious that the internal conductors cannot be nicked or cut since they may be weakened and cause malfunctions.
2. A matched connector should be chosen for the device. Relying on the specific devices, the cables has widespread termination with ring terminals or connectors. The connectors should be crimped or soldered rot the conductors to ensure secure links. Reliable contact can be achieved by a good crimp and stronger bond by soldering. Heat-shrink tubing should be used to cover the place after the connections are done. This gives more protections and can avoid sudden electrical fails.
3. Setup testing: the cable should be tested for continuity so as to confirm all links are complete and rightly transferring signals. You can use a multimeter to test if the cable conducts power in a proper way. Also, remember to check for any voltage loss that mat impact the long-time performance of the cable.
4. Resistance Testing for insulation: an insulation tester can be applied to confirm the good insulation with no compromise. You can test the cable in some conditions with heavy humidity or where the cable has high exposure to harsh environments.
