Things You Should Know Before Buying Lightbar Wiring Harnesses
Whether an off-road enthusiast in need of better night-ride visibility, a truck driver requiring better illumination on the road, or merely a car owner who wants to add more aesthetic features to his vehicle, the value of a solid, reliable wiring harness for one’s lightbar to optimize the vehicle’s lighting system is second to none. The key points of wiring harnesses for lightbars covered here involve functions and benefits.
What is a Lightbar Wiring Harness?

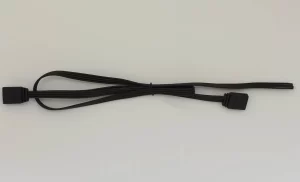

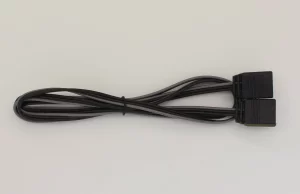

A light bar wiring harness is a pre-assembled wiring, connectors, and other components that are specially designed to connect and power LED light bars on vehicles. Unlike the wiring harness that may be considered the standard, probably unsuitable for high-powered LED light bars, a lightbar harness is built to manage higher currents, resist heat, and provide a safer and more reliable connection.
In technical wording, some particular gauge wires are incorporated into the wiring harness of lightbar, usually ranging from 14 AWG on the lower power applications up to 10 AWG for the high wattage bigger light bars depending on the current requirements. This difference in wire gauge is important because it takes into consideration resistance and current-carrying capacity directly proportional to the brightness and life of an LED light bar.
Why Do You Need a Lightbar Wiring Harness?
- Safety and Reliability: A dedicated lightbar wiring harness greatly reduces the possibility of electrical issues, such as short circuits or overheating, which may arise when improperly installed lighting systems draw more power than the vehicle’s existing wiring can handle.
- Easy Installation: Adding a lightbar is not an easy thing to do, as one has to cut, splice, and solder various wires without a wiring harness. A wiring harness for a lightbar simplifies the installation process-pretty straightforward: plug-and-play, with pre-fitted connectors, and fuses/relays are also included. In this way, even a beginner without any special knowledge or tools can easily install it.
- Durability and Longevity: The material in a lightbar wiring harness is made in consonance with the ability to resist severe environmental conditions. High-quality insulation base materials, such as XLPE, offer excellent resistance against abrasion, moisture, chemicals, and very high and low temperatures. This means your lights continue to work in all kinds of driving conditions-be it through dust, rain, or snow-and not only work but stay functional with reliable operation over time.
- Optimal Performance: The wiring harness ensures that voltage and current are appropriate for an LED light bar, useful in maintaining optimum brightness and extending the life of LEDs. Without a wire harness, some LED light bars result in voltage drops or power fluctuations.
The understanding of this difference is important, as while a lightbar harness would likely consist of little more than mounting brackets and basic wires, a wiring harness for a lightbar is an altogether more comprehensive approach, the hatch having in mind the power requirements and providing everything that could possibly be required for a secure installation.
Key Components of a Lightbar Wiring Harness
A good quality lightbar harness will include:
- Wires: These are usually made of high-quality copper or tinned copper, ensuring better conductivity and no corrosion. Usually, wires are jacketed with a tough material such as PVC or XLPE, which is resistant to high temperatures and abrasion. Copper has the least resistance and is very conductive; thus, it guarantees maximum power delivery to the LED light bar.

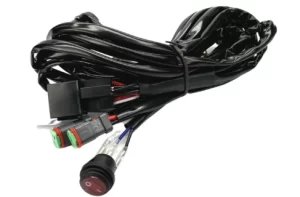

- Connectors: These enable the wire harness to be conveniently attached to the vehicle battery and the LED light bar. Common ones include waterproof connectors like Deutsch or Weather Pack that do not allow moisture access to the connection point. These connectors are designed in a way that they lock securely, providing a very reliable connection resistant to vibration and environmental exposure.
- Fuse: This is the fuse that saves the electrical system of your car from getting damaged due to overload or short circuit. The rating of the fuse should be selected according to the current draw of the lightbar to ensure maximum protection with few blowouts.
- Relay: The relay in the wiring harness of a lightbar serves as a switch to control a high-current circuit with a low-current circuit. This is important if one is to operate high-wattage LED lightbars without overpowering the vehicle’s factory wiring.

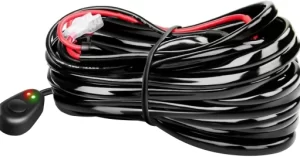

- Switch: Most harnesses feature a switch that could be mounted inside the vehicle, thereby enabling the driver to operate the light bar from within the cabin. The switch may be merely a toggle switch or even a more advanced waterproof rocker switch with LED indicators that show when the lightbar is active.
- Mounting Accessories: Some of the wiring harnesses for the lightbar have mounting accessories included, such as brackets, zip ties, and grommets for securing wiring along the frame of the vehicle to prevent it from becoming loose or damaged in operation.
How to Choose the Right Lightbar Wiring Harness for Your Vehicle
The selection of the proper lightbar wiring harness for your car is dependent on several variables that include:
- Compatibility: Make sure the wiring harness is compatible both with the vehicle and the LED light bar you’re trying to install. Note the voltage rating, usually 12V or 24V, and wattage ratings. An incompatible harness invites electrical failure or yields underpowered lights.
- Quality of Materials: Buy harnesses made of high-quality materials with tinned copper wires, waterproof connectors, and strong relays. For instance, in outdoor usage, tinned copper wires are more resistant to oxidation and corrosion.
- Installation Ease: For a self-installation, choose a wiring harness for your lightbar that includes instructions and all components necessary to complete mounting. This includes mounting brackets and zip ties, with some harnesses so advanced as to contain color-coded wires and pre-attached plug-in connectors for further simplifying the installation process.
- Length of Wires: It will depend on the size of the car and mounting location of the light bar. You have to make sure the length of harness is up to such a point that it reaches from the power source to the mounting location of the light bar without forcing the wires too much.
- Safety Features: In-built fuses and relays are very essential protective measures to protect the electrical system of any vehicle. A well-designed wiring harness for a lightbar should be able to incorporate these safety components that help in preventing electrical failures. Check for circuit breakers or self-resetting fuses on the harness for extra safety.
- Weather Resistance: A wiring harness for the lightbar will feature waterproof connectors, weatherproof relays, and wires with insulation for off-road or all-weather applications. That way, it would serve even in intensive weather conditions and protect against damage by electrical shorts and corrosion.
Installing a Lightbar Wiring Harness: Step-by-Step Guide
The process of installing a lightbar wiring harness is not as difficult, considering that one follows some steps correctly:
- Prepare Your Vehicle: Park on a level surface and disconnect the battery in order to avoid electrical shock. Ensure that all the tools and components will be available before the start of the work.
- Mount the Lightbar: The LED light bar should be put in its correct position using the correct mounting brackets. It has to be perfectly aligned and positioned for best illumination.
- Lay Out the Harness: Route the wiring harness for the lightbar from the battery toward the light bar, making sure to leave a slack in the wires in key spots over movement and vibration of the vehicle.
- Relay and Fuse Connection: The relay and fuse shall be installed in a dry, accessible place. The relay therefore shall be installed near the battery to minimize voltage drops along the wiring. The fuse should be as close to the battery for protection of wiring.
- Connect the Wires: Now, attach the wires to their respective terminals of the battery, light bar, relay, and switch. Tighten all these connections to prevent loose ones that can cause electrical issues.
- Test System: Reconnect the battery and test the lightbar for proper functioning. Check for flicker, dimming, or other abnormal behaviour of the lightbar that may indicate an issue with wiring.
- Secure the Wiring: Use zip ties, clips, or brackets in securing wiring along the vehicle frame, away from moving parts or heat sources. This is to avoid wear and tear while the wiring would be in place during operation.
First and foremost, a great lightbar wiring harness is an investment worth investing in for anyone looking to enhance his vehicle with great lighting. It ensures a safe, reliable, and easy installation of your LED light bars to perform optimally irrespective of the conditions. Fit your car with the best lighting setup and drive confidently, knowing that there is a reliable connection to keep the path illuminated.
By understanding the key features of lightbar wiring harnesses and what importance they hold, you will be in a position to ensure that your vehicle is effectual, safe, and efficient with just one lighting system for whatever driving need arises. Be it information about the safety features or any tips on installation, all you might need to know to ensure that an informed decision is made and that you utilize the most out of that setup for your lightbar is at our website VOCSON.
