How to Choose the Right Electronic Wire Cables

The selection of the appropriate electronic wire cable becomes a key factor in achieving the success of an electrical or electronic project. The selection of the matched wire guarantees efficient, safe, and durable operation for consumer electronic devices, industrial automation, or networking systems. Serving as specialized conductors, electronic wires are crafted for low-voltage and low-current uses, which enables them to be distinctive from high-electricity cables that are used in heavy electronic systems. In the comprehensive blog, the main aspects of electronic wires, such as the kind, materials, specifications, and practical applications, will be explored with exclusive ideas to guide you in making informed decisions.

1. What does an electronic wire refer to?

Electronic wires serve as insulated conductors that are mainly used for weak electrical current uses. They are key elements in different electronic appliances and systems, which provide flexibility, safety, and precision.

Primary Characteristics of Electronic Wires:

1. The wires are lightweight, thin, and compact, which is easy to carry and store in limited spaces.
2. Also, it is specifically built for low-electricity applications.
3. The wire is made with strong insulation to guarantee safety.
4. It has a wide range of specifications and color choices for easy identification.

General Applications:

Electronic wires have common applications in electronic appliances, telecommunications, auto wiring, and industrial machinery.

The Importance

If there is no proper wiring, devices cannot function in a safe or efficient manner. Unmatched wire selection may result in overheating, short circuits, or operational faults, which leads to safety risks and expensive repairs.

2. Kinds of Electronic Cables

Electronic wires are built in different kinds, each customized to specific standards, uses, and structural features.

By Standards

1. UL Standard:
   UL-recognized wires are globally recognized for their safety and performance. This type of wire is widely measured using the American Wire Gauge system and is fit for consumer electronic devices and industrial uses.
2. 3C Standard (China Mandatory Certification):
   This kind of wire is commonly applied in domestic uses in China. The wire complies with local safety and quality requirements and it is measured in square millimeters. It is also fit for internal wiring in home appliances.
3. VDE Standard (German Safety Certification):
   The wires are well-known for their stringent safety and quality standards. Having widespread applications in industrial and auto uses, VDE-certified wires provide durability and reliability in harsh conditions.

By Structure

1. Single-core wires include a single conductor that is typically applied in fixed setups. It is fit for applications where flexibility is not a must.

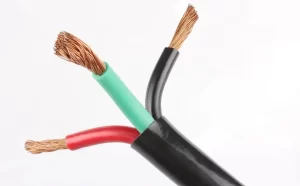

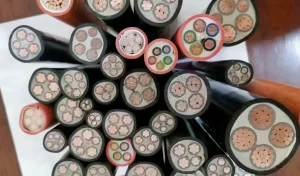

2. Multi-core wires involve several insulated conductors grouped together, offering better flexibility and durability. Because of its capabilities, it is fit for dynamic or high-vibration conditions.

3. Which Kinds of Materials Work Best for Electronic Wires?

The material composition of electronic wires is the decisive factor for their conductivity, durability, and suitability for specific uses.

Conductive Materials

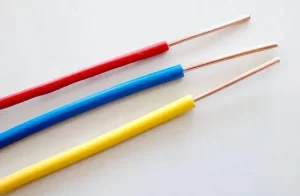

1. Bare copper provides outstanding conductivity, allowing it to be the staple for electronic wires. However, tinned copper has a tin coating, enabling it to be resistant to oxidation and corrosion, further extending the longevity of the wire in damp or corrosive conditions.
2. Aluminum remains lightweight and cost-saving but has less conductivity than copper. Also, it is usually applied in budget-sensitive applications or where weight plays a role.

Insulation Materials

1. PVC becomes the most commonly used insulation material because of its affordability, flexibility, and versatility.
2. XLPE provides excellent thermal resistance, which makes it fit for high-temp conditions.
3. LSHF is more friendly to the environment and safe for use in enclosed spaces since it reduces toxic emissions during fires.

Material Pick-out Tip:

Tinned copper wires should be used with XLPE insulation for auto applications where heat and vibration play crucial roles

4. Learning About the Colors of Electric Wire Cables

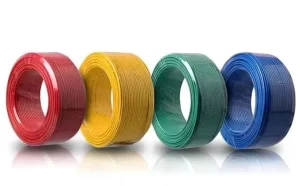

The colors of wire colors work as a visual instruction to recognize their function within a circuit. Proper color coding guarantees precise connections and decreases the occurrence of errors.

Universal Color Codes:

1. Green or Green-Yellow refers to ground wires for safety.
2. White refers to neutral wires.
3. Black refers to live wires in single-phase systems.
4. Red means secondary live wires.
5. Blue mentions active wires in three-phase systems.

Example Application:

In Ethernet cables, individual wires have color coding to promote fast and accurate setup. Misconnections in the systems can lead to network disruptions or data loss.

5. Specification of Electronic Wires

Electronic wires are categorized according to their gauge, construction, and the thickness of insulation. These factors decide their suitability for specific uses.

UL1007 Electronic Wire Specifications

The UL1007 series remains a commonly-used kind of electronic wire. Its specifications consist of:

Kind	AWG	Construction (No./mm)	Diameter (mm)	Insulation Thickness (mm)	Outer Diameter (mm)
UL1007	30AWG	7/0.10	0.30	0.41	1.12
UL1007	28AWG	7/0.127	0.38	0.41	1.20
UL1007	26AWG	7/0.16	0.48	0.41	1.30
UL1007	24AWG	11/0.16	0.61	0.41	1.43
UL1007	22AWG	17/0.16	0.76	0.41	1.58

The Selection of the Appropriate Gauge

1. AWG is a standardized system where the wire diameter is defined. Lower AWG numbers mean thicker wires that are capable of handling higher currents.
2. Square Millimeters are widely applied in 3C and VDE standards to denote the wire’s cross-sectional area.

6. Applications of Electronic Wires

Electronic wires remain the key elements in many industries and appliances. Their multi-functionality enables them to be applied in a large variety of applications.

a. Consumer electronic devices like TVs, speakers, and chargers use the wire for internal wiring. It has other applications in remote controls, game consoles, and other low-electricity equipment.

b. Communication systems utilize the wires as ethernet cables for internal connectivity. It is also used in telephone lines and coaxial cables to achieve reliable signal transfer.

c. Auto Systems require electronic wires to be the wiring harnesses to power and monitor vehicle functions. It is also applied in sensors, infotainment systems, and lighting circuits,

d. The wires can also be found in machinery, robotics, and control panels, offering reliable connections in high-heat or high-vibration conditions.

7. Where to Purchase Premium-Quality Electronic Cables?

Investing in reliable electronic wires plays a crucial role in guaranteeing project success and long-term safety.

Main Considerations

1. A reputable manufacturer with certified expertise and a proven record of manufacturing premium-quality wires should be selected.
2. The wires should be ensured that they fit the required safety standards like UL, 3C, or VDE.
3. Wires made from high-quality materials should be opted for to ensure durability and performance.
4. Though affordability is vital, quality is a key factor in reducing long-term costs related to substandard wires.

8. Advice for Lifespan and Safety

1. Wires should be stored in a cool and dry area to make sure there is no degradation of insulation.
2. Matched connectors should be used to ensure proper setups. Also, over-bending should be prevented to protect the insulation.
3. Wires should be checked regularly for any signs of wear, and the damaged ones should be replaced if needed.

The selection of the matched electronic wire plays an essential role in ensuring the efficiency, safety, and reliability of any electrical system. Learning about the kinds, materials, specifications, and uses of these wires enables you to make good decisions customized to the demands of your project. No matter for consumer electronic devices, auto systems, or industrial uses, purchasing premium wires guarantees great performance and lifespan.

We are the trusted, experienced suppliers for dependable electronic wires. We are committed to quality and innovation. Equipped with the right products and knowledge, you are able to build systems that have reliable performance for years to come.
