Home > DC Power Cable > Power Splitter Cable > DC Splitter Cable

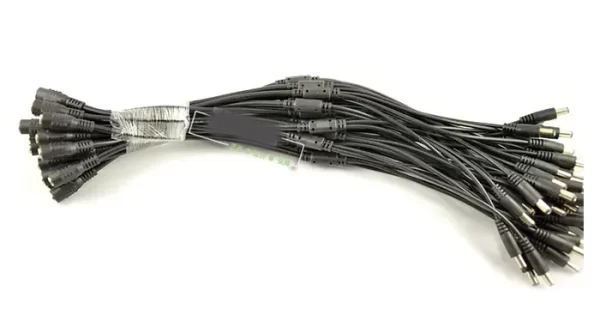

DC Splitter Cable

A DC splitter cable is an electrical cable designed for connecting a single power source to several other devices simultaneously. It typically includes one input connector that attaches to the power source and multiple output connectors that attach to the devices. This cable ensures that each connected device experiences correct voltage and current according to the power source and specifications of such a cable. It also makes it practical in a setup where several devices require power, as it has eliminated the use of an adapter for each device, making the setup less cluttered and easier henceforth to manage.

dc splitter cable banner
Custom Wire Harhesses icon
Custom Wire Harhesses
oem odm wire harness icon
ODM & OEM
High Reliability icon
High Reliability
Certificates icon
Certificates
Competitive Pricing icon
Competitive Pricing
On-Time Delivery icon
On-Time Delivery

Power Splitter Cable Products

5.5x2.1mm one-way multi-channel 12v power supply DC extension cable
5.5x2.1mm one-way multi-channel 12v power supply DC extension cable
5.5 2.1mm DC cable 1 to 8 ways female to male 22AWG 40cm Black
5.5 2.1mm DC cable 1 to 8 ways female to male 22AWG 40cm Black
5.5 2.1mm DC cable 1 to 8 ways female to male 22AWG 40cm white
5.5 2.1mm DC cable 1 to 8 ways female to male 22AWG 40cm white
5.5 2.1mm DC cable 1 female to 6 male ways 22AWG 30cm black
5.5 2.1mm DC cable 1 female to 6 male ways 22AWG 30cm black
5.5 2.1mm DC cable 1 female to 5 male ways 22AWG 30cm white
5.5 2.1mm DC cable 1 female to 5 male ways 22AWG 30cm white
5.5 2.1mm DC cable 1 female to 4 male ways 22AWG 30cm black
5.5 2.1mm DC cable 1 female to 4 male ways 22AWG 30cm black
5.5 2.1mm DC cable 1 female to 4 male ways 22AWG 30cm white
5.5 2.1mm DC cable 1 female to 4 male ways 22AWG 30cm white
5.5 2.1mm 12V DC cable 1 female to 2 male 22AWG 15cm black
5.5 2.1mm 12V DC cable 1 female to 2 male 22AWG 15cm black
5.5 2.1mm 12V DC cable 1 female to 2 JST male 22AWG 50cm black main line 30cm branch line 20cm
5.5 2.1mm 12V DC cable 1 female to 2 JST male 22AWG 50cm black main line 30cm branch line 20cm
5.5 2.1mm DC cable 1 female to 2 male ways 22AWG 30cm white
5.5 2.1mm DC cable 1 female to 2 male ways 22AWG 30cm white
5.5 2.1mm DC 1 female to 2 female ways 22AWG 30cm black
5.5 2.1mm DC 1 female to 2 female ways 22AWG 30cm black
5.5 2.1mm DC 1 male to 2 male ways 22AWG 30cm black
5.5 2.1mm DC 1 male to 2 male ways 22AWG 30cm black
1 to 2 Way DC Power Splitter DuPont Cable For Under Cabinet Lights
1 to 2 Way DC Power Splitter DuPont Cable For Under Cabinet Lights
1 Female To 2 Male 5.5 2.1mm DC Power Splitter Cable
1 Female To 2 Male 5.5 2.1mm DC Power Splitter Cable
1 Female To 3 Male 5.5 2.1mm DC Power Splitter Cable
1 Female To 3 Male 5.5 2.1mm DC Power Splitter Cable
1 Female To 3 Male 5.5 2.5mm DC Power Splitter Cable
1 Female To 3 Male 5.5 2.5mm DC Power Splitter Cable
1 Female To 8 Male 5.5 2.1mm DC Power Splitter Cable
1 Female To 8 Male 5.5 2.1mm DC Power Splitter Cable
5.5 2.1mm DC cable 1 female to 4 male ways 22AWG 30cm white
5.5 2.1mm DC cable 1 female to 4 male ways 22AWG 30cm white

DC Power Cables Parameters

ltem Name Values
Color White, Red, Black(Support Customization))
Gauge 12 - 30AWG(Support Customization)
Voltage 3 - 24V
Waterproof Rate IP67
Ways 2 - 8
Conductor Material Copper, Tinned copper
Insulation Material PVC, Silicone
Max current 0-12A(Based on customer's needs)
Rated Temperature -40-80°C
Cable Length Custom for your projects
Certification Rohs

Can I use a DC splitter cable to power multiple devices simultaneously?

Yes, that could be the actual working of a DC splitter cable to supply power to multiple devices at one time. However, again, one needs to make sure that the voltage and current that a power source can supply would suffice for all the connected devices. If the total power requirement exceeds the capacity of either a power source or even a cable, it might result in overheating or malfunctioning of devices. Provided appropriate calculation of the power requirements and painstaking selection of the pertinent DC splitter cable, one could guarantee safe and effective operations.

Is it possible to extend a DC splitter cable for longer distances?

Although it is possible to extend a DC Splitter cable, this has to be done with high caution due to voltage drop and high-quality cables. Voltage can drop due to in-wire resistance as more length is added to the cable, hence affecting the devices’ performance. Alternatively, cables with a thicker gauge can reduce this phenomenon since a lower AWG number allows for efficient delivery of power. Also, extend the cable only within limits set by the manufacturer to avoid overloading the system.

How do I choose the right DC splitter cable for my setup?

Splitter cable selection is an art of balancing power needs of a given setup. First, determine the voltage and current ratings from your power source and the attached devices. Make sure the cable can handle the total power load without exceeding its specifications. Consider the number of devices you are connecting and choose a splitter with enough outputs. Moreover, it will be useful to check the compatibility of sizes for connector fitting.

Can a DC power splitter cable handle high current loads?

Whether this DC power splitter cable is capable of handling high current loads is all about its design and specifications. While some are heavy-duty, others can handle higher current loads. Others can only be used with low power and hence must be rated for the application. You need to ensure that the cable current rating matches or is more than the total current draw that the gadgets will connect. Using a cable beyond its capacity can result in overheating, damage, or even fire hazards.

Can a DC splitter cable be used for both AC and DC power?

A DC splitter cable is designed for DC power and therefore should not be used for AC applications. This is because DC cables are not designed to handle higher voltages and other characteristics that come attached to AC power, including design and insulation. Always make it a point that cables used at any one time are the same as the type of power supply in terms of safety and compatibility.

Do DC splitter cables affect the performance of connected devices?

High-quality DC splitter cables do not degrade the performance of the connected devices, provided the power source and cable specifications meet the requirements of those devices. However, in the case of having a low-quality cable or exceeding the power capacity, one may face voltage fluctuations that could lead to degraded performance or even damage to the devices. Such situations can be avoided if compatibility is proper and a reliable cable is used.

DC Splitter Cable for Your Project? We Are Ready to Support You.
