12V Power Cables

The perfect insulation for our12V power cord lies in the use: PVC Insulation: This kind of insulation is widely used for indoor settings. It offers good protection at a low cost. Silicone Insulation: It is fit for high-heat conditions and provides high flexibility and durability. Weather-Resistant Insulation: This is ideal for outdoor settings, as it has resistance to moisture and UV rays.

Quote Now
12V power cable banner

12V Power Cables Wire Cable Products

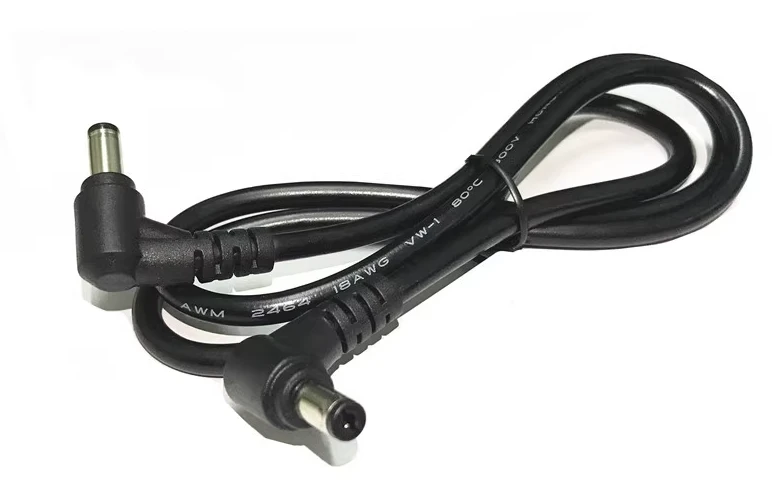

90 degree DC5.5-2.1mm double male 12V10A power cord
90 degree DC5.5-2.1mm double male 12V10A power cord

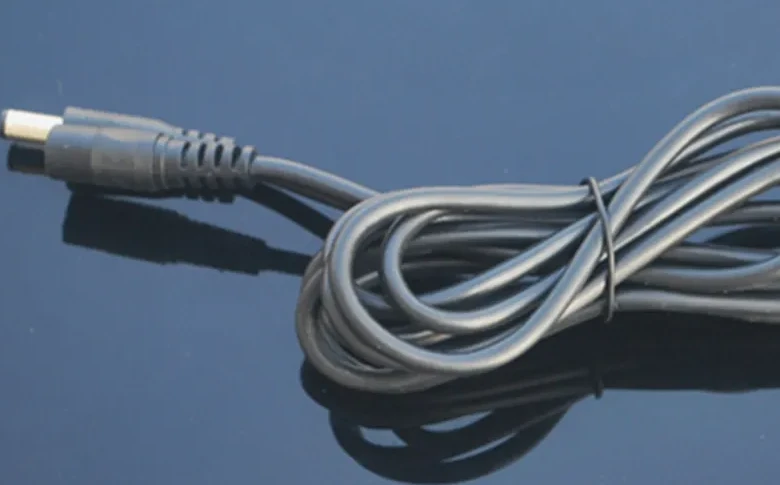

12V Monitoring connector one to one light with DC head power extension cable
12V Monitoring connector one to one light with DC head power extension cable

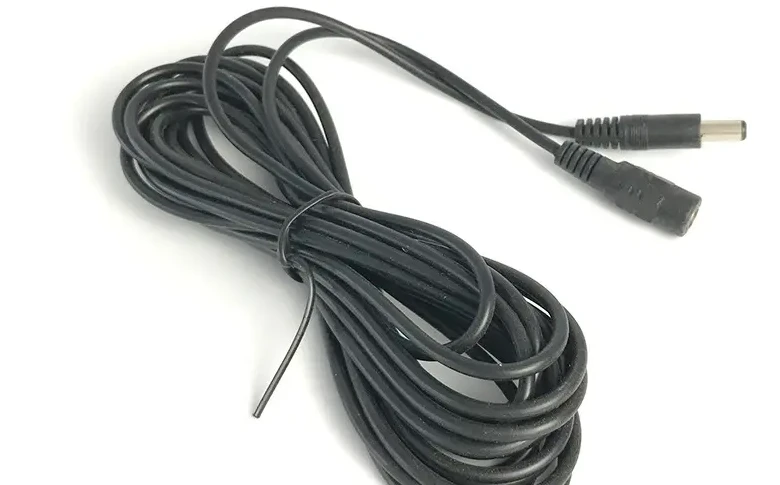

DC power supply 12V male to female power cable 5.5X2.1mm male to female cable
DC power supply 12V male to female power cable 5.5X2.1mm male to female cable
5.5x2.1mm one-way multi-channel 12v power supply DC extension cable
5.5x2.1mm one-way multi-channel 12v power supply DC extension cable

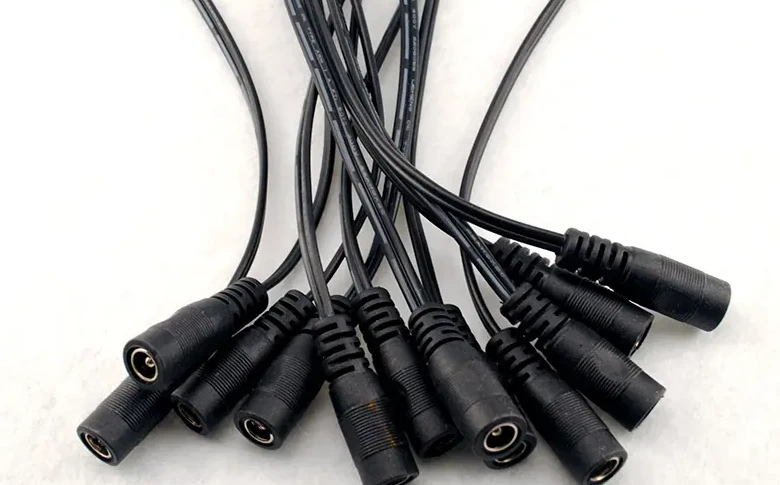

12V monitoring 2.1 power DC male and female plug cable
12V monitoring 2.1 power DC male and female plug cable

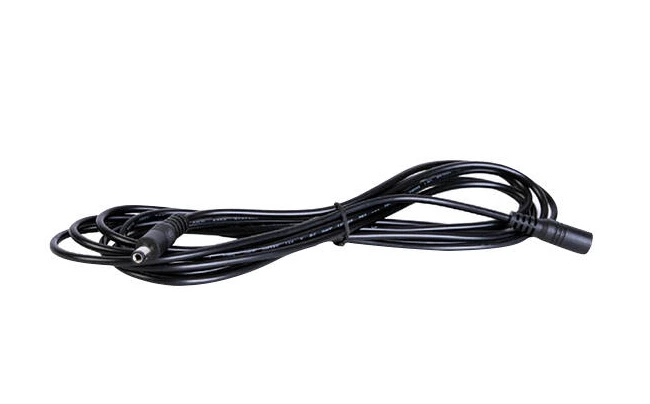

3m 12v dc connector power extension cable
3m 12v dc connector power extension cable

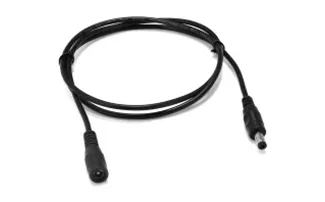

12V DC Power Adapter Cable Jack Plug Extension Cable For Security Camera
12V DC Power Adapter Cable Jack Plug Extension Cable For Security Camera

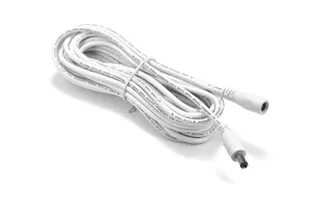

5.5mm 2.1mm 12V DC Power Cord 20 Gauge Wire
5.5mm 2.1mm 12V DC Power Cord 20 Gauge Wire

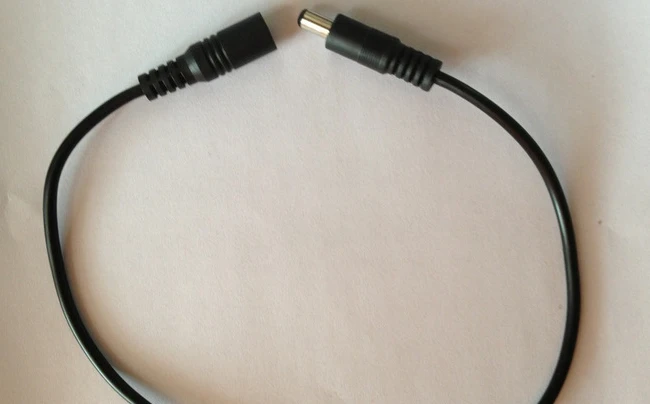

5.5x2.1mm 12V DC extension cable
5.5x2.1mm 12V DC extension cable

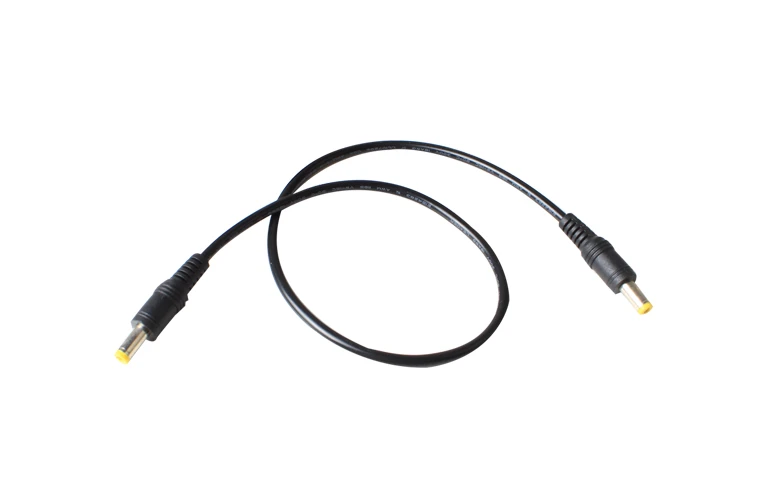

Male to male adapter power cord adapter 12v extension cord
Male to male adapter power cord adapter 12v extension cord

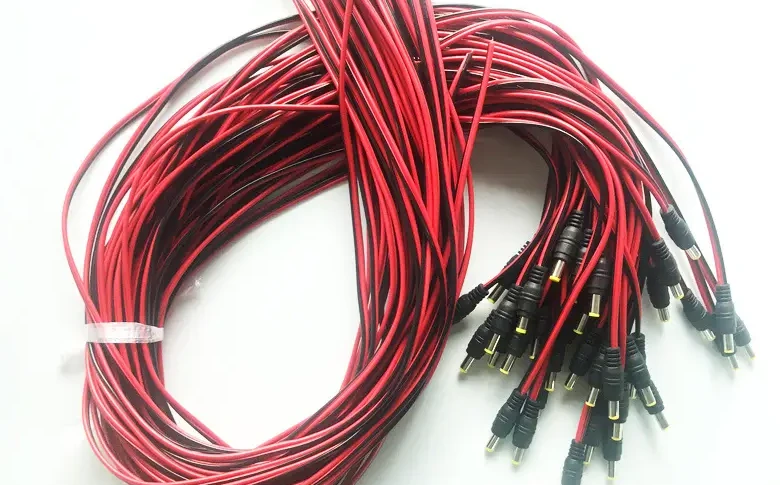

Copper 5.5*2.1mm 12V DC male extension cord
Copper 5.5*2.1mm 12V DC male extension cord
12V dc monitoring power copper core thick connector red and black male cable
12V dc monitoring power copper core thick connector red and black male cable
5.5 2.1mm 12V DC cable 1 female to 2 male 22AWG 15cm black
5.5 2.1mm 12V DC cable 1 female to 2 male 22AWG 15cm black

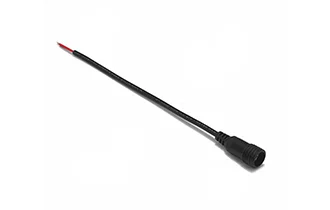

5.5 2.1mm 12v DC audio plug female waterproof single side cable 22AWG black 17-0.14
5.5 2.1mm 12v DC audio plug female waterproof single side cable 22AWG black 17-0.14
5.5 2.1mm DC12V female waterproof single side cable 22AWG transparent wire diameter 3.5mm 17/0.15
5.5 2.1mm DC12V female waterproof single side cable 22AWG transparent 17/0.15
5.5 2.1mm 12V DC audio plug female waterproof single side cable 22AWG 20cm black 17/0.14
5.5 2.1mm 12V DC audio plug female waterproof single side cable 22AWG 20cm black 17/0.14
5.5 2.1mm 12V DC cable 1 female to 2 JST male 22AWG 50cm black main line 30cm branch line 20cm
5.5 2.1mm 12V DC cable 1 female to 2 JST male 22AWG 50cm black main line 30cm branch line 20cm

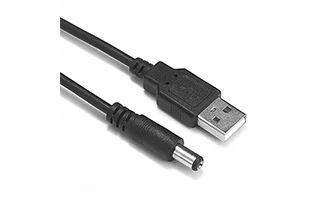

5.5 2.1mm 12V DC male + USB2.0 male 22AWG 100cm black wire diameter 3.5mm 17/0.14
5.5 2.1mm 12V DC male + USB2.0 male 22AWG 100cm black wire diameter 3.5mm 17/0.14

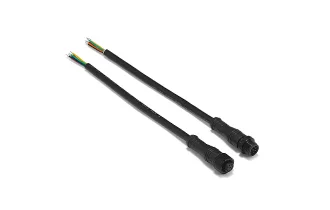

8-core 0.2mm² male and female 12V waterproof cable 20cm black
8-core 0.2mm² male and female 12V waterproof cable 20cm black

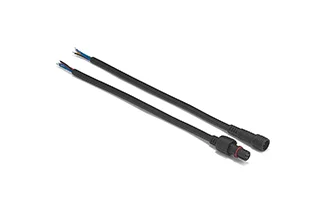

5-core 0.2mm² male and female 12V waterproof cable 20cm black
5-core 0.2mm² male and female 12V waterproof cable 20cm black
6pin SM male and female connector, white, blue, red, green, yellow, black, 12V parallel, 22AWG 17/0.12
6pin SM male and female connector, white, blue, red, green, yellow, black, 12V parallel, 22AWG 17/0.12
JST male and female 12V docking red and black wire 22AWG 17-0.12
JST male and female 12V docking red and black wire 22AWG 17-0.12

12V Power Cable Parameters

ltem Name Values
Color White, Red, Black, Green, Transparent, etc. (Support Customization))
Gauge 18-228AWG(Support Customization)
Voltage 12V
Waterproof Rate IP67
Conductor Material Copper, Tinned copper
Insulation Material PVC, Silicone
Max current 0-12A(Based on customer's needs)
Rated Temperature -40-80°C
Cable Length Custom for your projects
Certification Rohs

Yes, a 12V power cord can replace a wall adapter if the following conditions are met:

  1. Voltage and current ratings of the power cord should be checked to see if they fit the device’s requirements.
  2. The plug type of the power cord should be compatible with the connector of the device.
  3. The polarity of the cord should be confirmed to see if it fits the device to avoid potential issues.

Sure, a 12V power cable is extendable, but the following factors should be kept in mind:

  1. Voltage Drop: Longer cables may lead to voltage drop, particularly with thin wires, but a thicker gauge can be used to minimize this effect.
  2. Connector: The extension should be equipped with tight connectors to avoid power loss or disconnection.
  3. Amplifier or Booster: For a longer distance, a power booster may help keep a steady 12V output.

The voltage output of a 12V power cord can be measured by:

  1. A multimeter can be used for measurement but remember to set it to DC volts.
  2. Also, you can connect probes to terminals. The red probe should be placed on the positive and the black probe on the negative terminal.
  3. You can also read the display. A reading close to 12V should be shown by the multimeter if the cable supplies the right voltage.
Most 12V power cables are built with flame-retardant insulation, particularly if crafted for auto or industrial applications, but it’s more advisable to confirm the cable’s specifications if flame resistance is a needed feature for your device.

When handling 12V power cables in auto settings:

  1. Battery Disconnection: To avoid potential short circuits, the battery should be disconnected before working with 12V cables.
  2. Cable Insulation Check: Be assured that there are no cracks or wear in the insulation to prevent electrical risks.
  3. Connection Securing: All terminals should be checked to see if they are tightly linked to protect loosening from vibration.

To choose the correct gauge for your 12V power cable:

  1. Current Requirements: The cable should handle the current ratings of the device without causing overheating.
  2. Cable Length: The length of the cable matters. Longer cables may require a thicker gauge may be required for longer cable to prevent voltage drop.
  3. AWG Chart: American Wire Gauge (AWG) charts help confirm the gauge that is suited for special requirements of currents and distances.
